नए युग की स्टील ट्यूब होल्डिंग
NINGBO पाइपवे व्यापार कं, लि
| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | Pipeway |
| प्रमाणन: | ISO9001,TS16949 |
| मॉडल संख्या: | DIN2391 / EN10305-1/EN10305-4 / GB3639 / ASTM A519 |
| न्यूनतम आदेश मात्रा: | 1 टन |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | बंडल पैकेज, लकड़ी के बॉक्स पैकेज |
| प्रसव के समय: | 45 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 3000 टन / माह |
| सामग्री: | एसटी35, एसटी45, एसटी52, ई235, ई255, ई355 | आवृति सीमा: | बीके, बीकेडब्ल्यू, बीकेएस, जीबीके, एनबीके |
|---|---|---|---|
| ओडी आकार: | 6-88 मिमी | डब्ल्यूटी आकार: | 1-15 मिमी |
| सतह: | स्वच्छ, ऑक्साइड स्केल मुक्त | आवेदन: | ऑटोमोटिव पार्ट्स पाइप |
| फ़ायदा: | उच्चा परिशुद्धि | कीवर्ड: | शीत चित्रण |
| डिलीवरी का समय: | 45 दिन | ||
| प्रमुखता देना: | cold drawn seamless steel pipes,seamless steel tubes for construction,high precision cold drawn tubing |
||

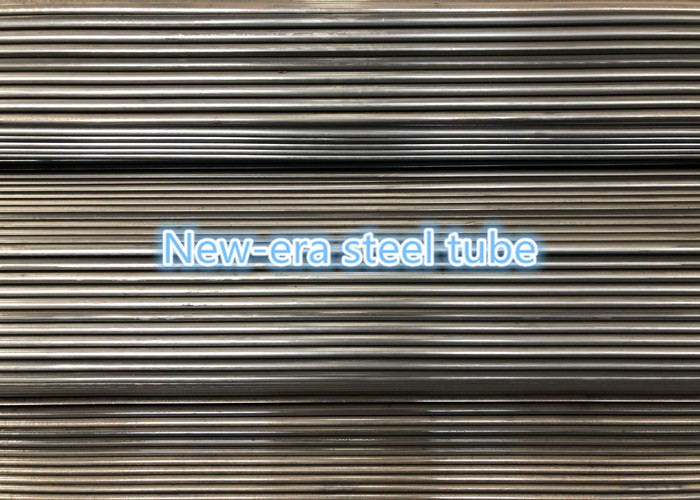

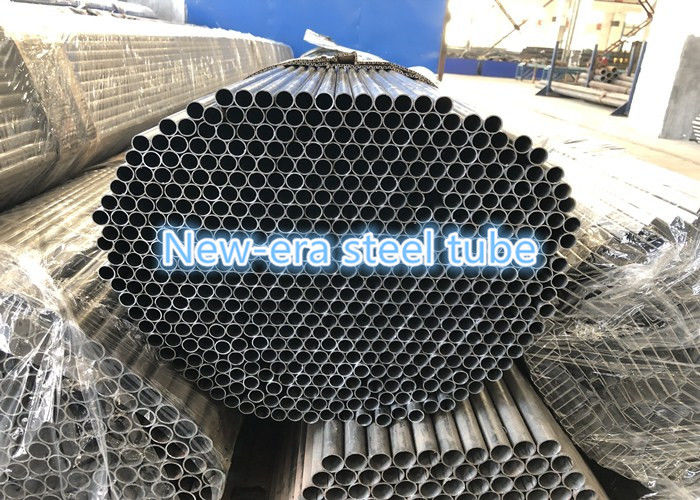

Product Name: Cold Drawing Seamless steel pipes
Material: ST35, ST45, ST52, E235, E355, E255, 4130, 1020, 1010, 1045, STKM11A, STKM13C, etc
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: BK, BKW, BKS, GBK, NBK
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.
Stable Quality with Comeptitive Price.
NBK(Bright Annealing) Heat Treatment, Surface is clean and smooth, without oxide scale
Good Extending and Bending Ability.
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:BKS, GBK, NBK
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | Seamless Cold Drawn Precision Steel Tube |
| Material | ST35, St45, ST52 |
| Delivery Condition | BK, BKW, BKS, GBK, NBK |
| Standard | DIN2391 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
| Keyword | Cold Drawn Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number |
C Max. |
Si Max. |
Mn |
P Max. |
S Max. |
| ST35 | 1.0308 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST45 | 1.0408 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST52 | 1.0580 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| Steel Grade | BK | BKW | BKS | |||||
| Name | No. |
Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
| ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
| ST52 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
| Steel Grade | GBK | NBK | ||||
| Name | No. |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
| ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
| ST52 | 1.0580 | 450 | 22 | 490--630 | 355 | 22 |
